When searching for the best contour gauges with locking features, I focus on those that offer precise, secure measurements for my projects. I look for models with locking mechanisms that hold shapes firmly, adjustable tension, and durable materials like high-quality plastic or aluminum cores. Connectable designs also help when working on larger shapes. If you keep exploring, you’ll discover detailed options that fit different needs and budgets, making your work both accurate and easier.
Key Takeaways
- Look for contour gauges with robust locking mechanisms like lever locks or pin locks for secure shape transfer.
- Choose models with high-quality, durable materials such as ABS plastic and aluminum cores for longevity and stability.
- Prioritize gauges with clear, easy-to-read measurement scales in inches and centimeters for accurate copying.
- Consider sizes and connectable designs to handle various project scales, from small templates to large contours.
- Review user feedback and brand reputation to ensure reliability, precision, and ease of locking during complex measurements.

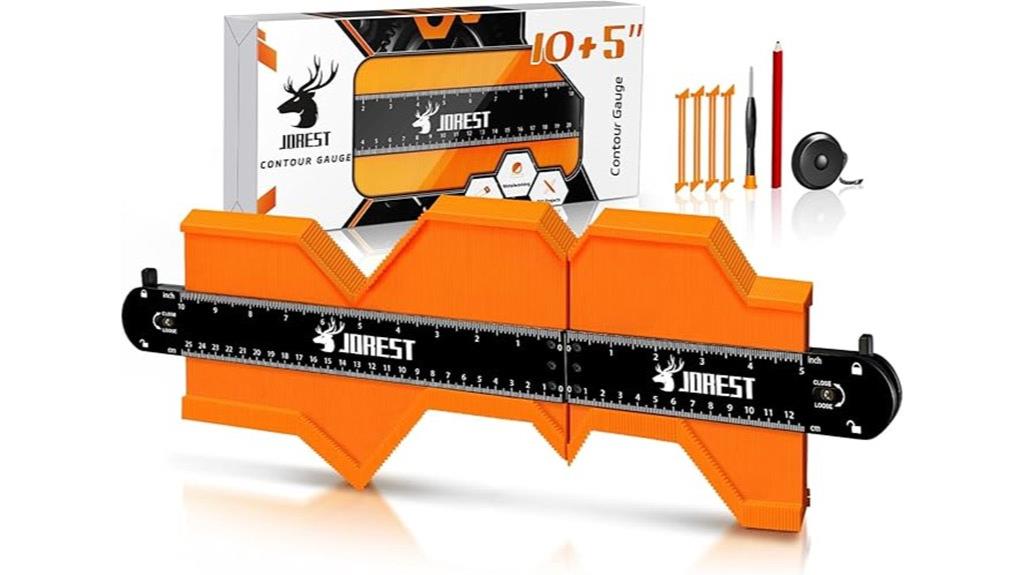

JOREST Contour Gauge (10+5 Inch) for Shape Duplicating and Measuring
If you’re looking for a versatile contour gauge that adapts to different project needs, the JOREST Contour Gauge (10+5 Inch) is an excellent choice. It features three sizes—5-inch, 10-inch, and 15-inch—spliced together for maximum flexibility. The slim blade thickness of just 0.05 inches ensures precise tracing, while the adjustable tension helps maintain accuracy. Its dual-scale in inches and centimeters makes measurements clear and versatile. Perfect for shape duplication, measuring, and profiling, this gauge is compatible with various tools and applications. Whether you’re a DIYer, carpenter, or craftsman, the JOREST contour gauge offers reliable, easy-to-use performance for all your projects.
Best For: DIY enthusiasts, craftsmen, carpenters, and professionals who need precise shape duplication and measuring tools for various home improvement, woodworking, and remodeling projects.
Pros:
- Spliced together for extended length with high accuracy and precision
- Slim blade thickness of only 0.05 inches for detailed and accurate tracing
- Dual-scale in inches and centimeters for versatile measurement options
Cons:
- Requires manual adjustment of tension with a screwdriver, which may be less convenient for quick changes
- Splicing may cause slight misalignments if not assembled carefully
- Limited to manual operation, lacking digital or automated features

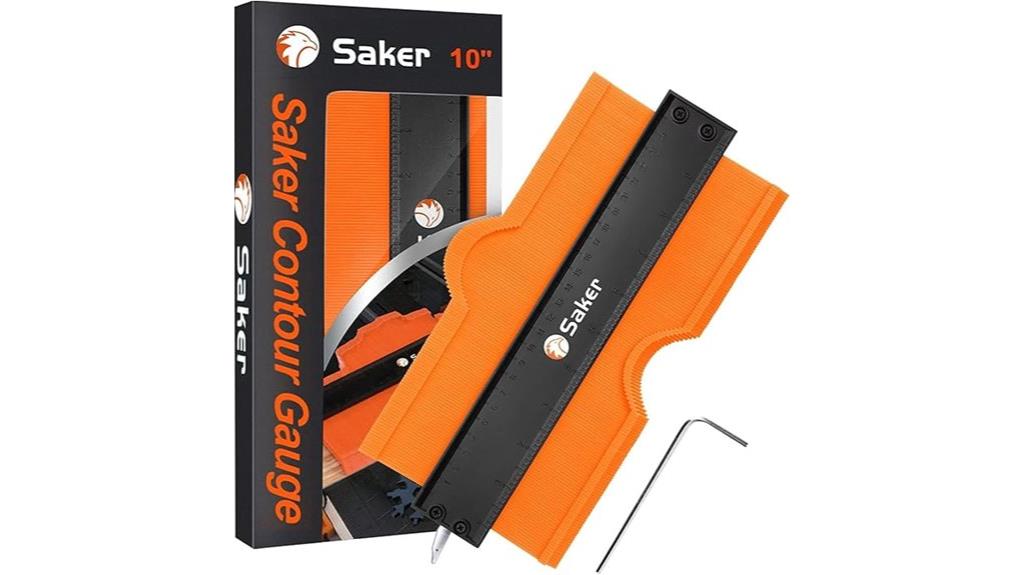

Saker Contour Gauge (10 Inch) Profile Tool
The Saker Contour Gauge (10 Inch) Profile Tool stands out for its adjustable locking mechanism, making it an ideal choice for DIYers and professionals who need precise shape duplication. Made of durable ABS plastic, it’s lightweight, rustproof, and sturdy, perfect for tight spaces like corners and ceilings. Its flexible teeth accurately trace complex curves, while the adjustable tension and locking feature guarantee shapes stay in place during transfer. Whether you’re working on woodworking, tiling, or auto body projects, this gauge provides consistent, accurate contours. Its portability and ease of use make it reliable for various tasks, minimizing errors and material waste.
Best For: DIY enthusiasts and professionals needing precise shape duplication for woodworking, tiling, auto body work, and home renovation projects.
Pros:
- Adjustable locking mechanism ensures shapes stay in place during transfer.
- Made of durable, lightweight ABS plastic suitable for tight spaces and demanding job sites.
- Flexible teeth allow for accurate tracing of complex and irregular curves.
Cons:
- Does not include a multi-tool hex key set, which may be helpful for tension adjustments.
- Limited to 10-inch length, which may not accommodate larger projects without multiple tools.
- Some users may require tutorials to master tension adjustments for optimal accuracy.

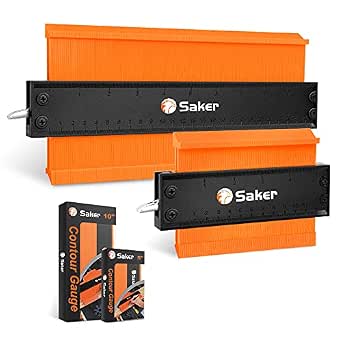

Saker Contour Gauge Duplication Tool (10 Inch + 5 Inch)
Designed for both professional craftsmen and serious DIYers, the Saker Contour Gauge Duplication Tool offers unmatched versatility with its 10-inch and 5-inch sizes. Made from durable, rustproof ABS plastic, it features teeth about 0.05 inches wide, capturing even subtle bumps for accurate shape duplication. The adjustable tension and lever lock ensure secure, precise measurements, reducing errors during transfer. Its high visibility orange body prevents loss during use, making it easy to handle in various projects like fitting pipes, moldings, or auto bodywork. The dual sizes provide flexibility for different tasks, simplifying complex jobs and saving time with quick, reliable contour copying.
Best For: DIY enthusiasts, professional carpenters, and craftsmen needing precise contour duplication for irregular shapes and complex projects.
Pros:
- Made from durable, rustproof ABS plastic with high visibility orange for easy handling.
- Features adjustable tension and a lever lock to ensure secure, accurate measurements.
- Comes in both 5-inch and 10-inch sizes, offering versatility for various tasks.
Cons:
- The scale is only in centimeters, requiring conversion for users accustomed to inches.
- The lock knob is designed for right-handed use, which may be inconvenient for left-handed users.
- Some users suggest that narrower or metal pins could enhance measurement precision.
Zozen Contour Gauge 2 Pack with Lock
For anyone seeking a reliable contour gauge that guarantees precise measurements and consistent results, the Zozen Contour Gauge 2 Pack with Lock is an excellent choice. Its engraved scale resists wear, guaranteeing clear readings over time, while the tough ABS plastic body offers durability and shape conformity. The locking mechanism prevents accidental movement, maintaining shape integrity for accurate pattern transfer. Available in 10 and 6-inch sizes, it’s versatile for various projects, from measuring irregular surfaces to cutting precise templates. Whether for DIY, construction, or renovation, this gauge’s high-precision profile copying ensures you get consistent, accurate results every time.
Best For: DIY enthusiasts, carpenters, and professionals seeking precise and reliable contour measurement tools for various renovation, construction, and crafting projects.
Pros:
- Engraved scale resists wear and fading for long-term accuracy
- Durable ABS plastic body ensures high strength and shape conformity
- Locking mechanism maintains shape integrity for consistent pattern transfer
Cons:
- May require careful handling to avoid injury during use
- Limited to contour measurement, not suitable for all types of projects
- Sizes (6 and 10 inches) may not cover very large or very small contours as needed

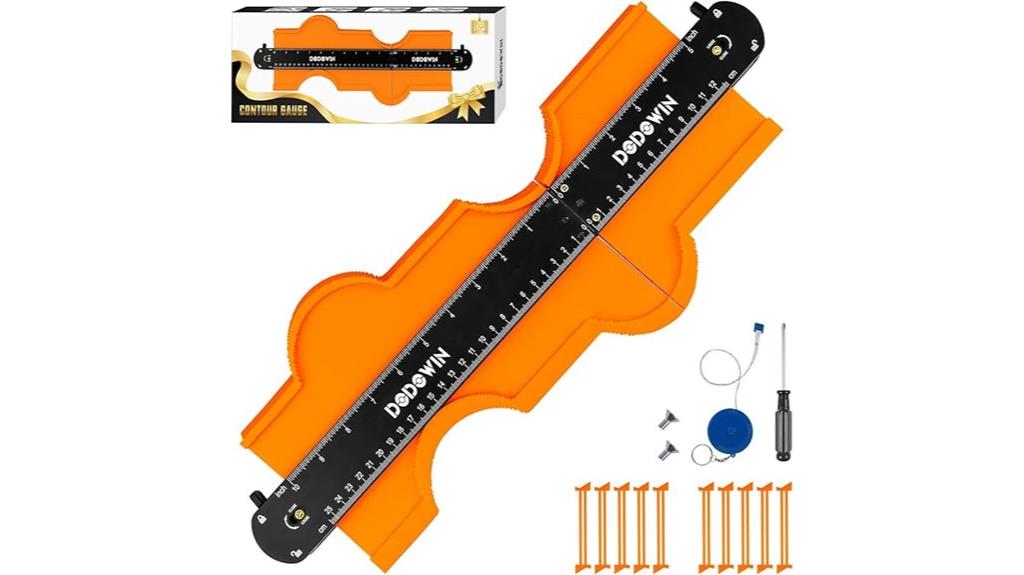

Dodowin Connectable Contour Gauge (10+5 inch)
If you need a versatile contour gauge that offers precise shape copying and extended reach, the Dodowin Connectable Contour Gauge (10+5 inch) stands out as an excellent choice. Made from durable ABS plastic, it features lockable adjustments for accurate measurements and can be connected for longer, seamless measurements. Its graduated measurements in inches and centimeters make it easy to record and replicate shapes accurately. Whether you’re working on woodworking, crafts, or construction projects, this tool simplifies shape transfer and fitting tasks. Plus, its sturdy build and locking mechanism guarantee reliable results every time, making it a practical addition to any toolkit.
Best For: DIY enthusiasts, carpenters, and professionals seeking precise shape copying and extended measurement capabilities for woodworking, crafts, and construction projects.
Pros:
- Made from durable, upgraded ABS plastic for long-lasting use
- Lockable adjustment and graduated measurements in inches and centimeters for precise copying
- Connectable design allows for extended reach and seamless measurement of larger or irregular shapes
Cons:
- May require some practice to master connecting and locking for complex shapes
- Slightly larger size might be cumbersome for very tight or delicate spaces
- The plastic material, while sturdy, may be less suitable for extremely heavy-duty industrial applications

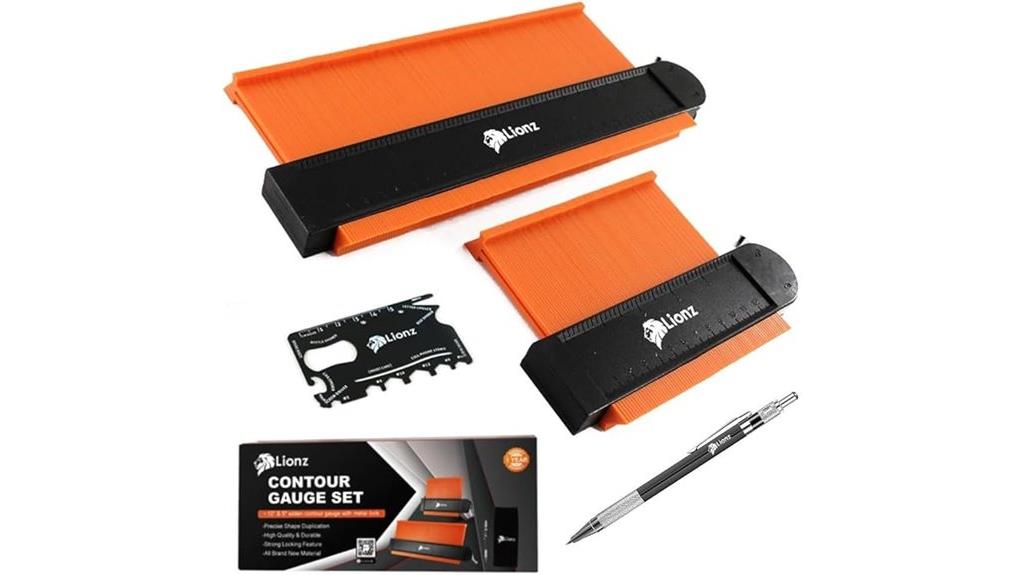

Lionz Contour Gauge with Lock and Multi-Tool
The Lionz Contour Gauge with Lock and Multi-Tool stands out as an ideal choice for DIYers, carpenters, and craftsmen who need precise shape copying across various projects. Its large 10-inch lockable gauge is perfect for bigger shapes, while five smaller profiles handle intricate details. The flexible pins ensure accurate measurements, and the metal locking mechanism maintains shape integrity during transfer. Made from durable plastic with an aluminum core, it’s built to resist scratches, rust, and wear. The included multifunction tool and carrying bag add convenience, making it a versatile, reliable tool for woodworking, tiling, flooring, and more.
Best For: DIYers, carpenters, and craftsmen seeking precise shape copying for woodworking, tiling, flooring, and construction projects.
Pros:
- Large 10-inch lockable gauge for handling bigger shapes with ease
- Durable construction with high-quality aluminum core and rustproof plastic body
- Comes with multifunction tool and carrying bag for added convenience and portability
Cons:
- May be less suitable for very small or extremely detailed shapes due to size limitations
- Requires manual adjustment and locking, which might take some practice to perfect
- Plastic parts, while durable, could be prone to damage if handled roughly over time

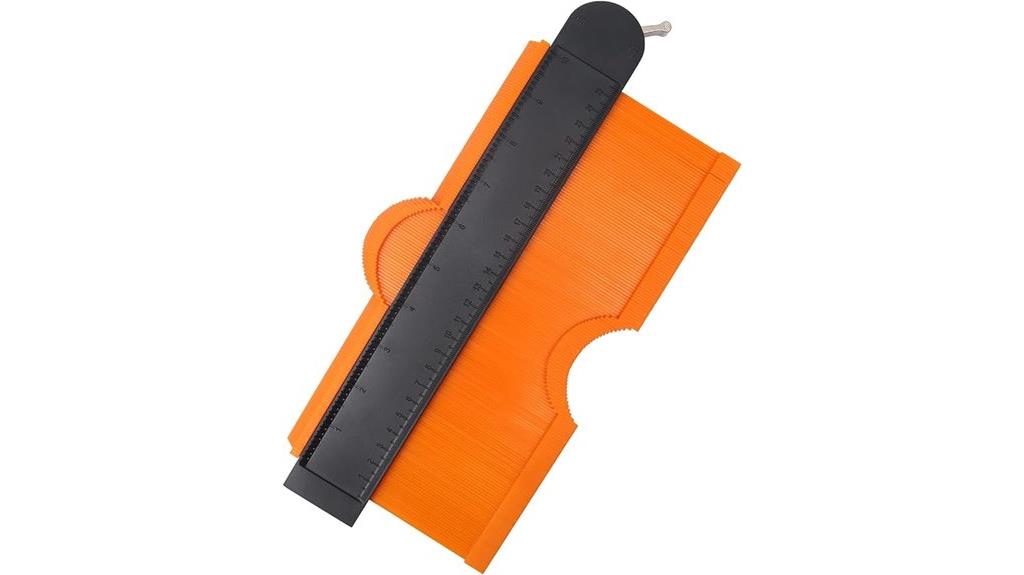

10 Inch Contour Gauge Profile Tool with Lock
The Inch Contour Gauge Profile Tool with Lock stands out for its precise locking mechanism, making it an essential choice for professionals and serious DIYers. Its 10-inch size allows for accurate duplication of irregular shapes, perfect for tasks like trimming, installing floors, tiles, or fitting pipes. Made from durable ABS plastic with an upgraded metal lock, it’s waterproof, rustproof, and built to last. The dual scales in inches and centimeters ensure precise measurements, while the ergonomic design makes adjustments quick and easy. This tool simplifies complex projects, reduces trial and error, and helps achieve perfect fits every time. It’s a reliable, versatile addition to any toolkit.
Best For: professionals and serious DIYers who need a precise, durable tool for duplicating irregular shapes in woodworking, construction, flooring, and home improvement projects.
Pros:
- Features a precise locking mechanism for accurate shape duplication.
- Made from high-quality, waterproof, rustproof ABS plastic with a durable metal lock.
- Dual scales in inches and centimeters for versatile and exact measurements.
Cons:
- The 10-inch size may be limiting for larger or more complex shapes.
- Plastic construction, while durable, may be less suitable for extremely heavy-duty use over time.
- May require some practice to master quick adjustments for perfect tracing.

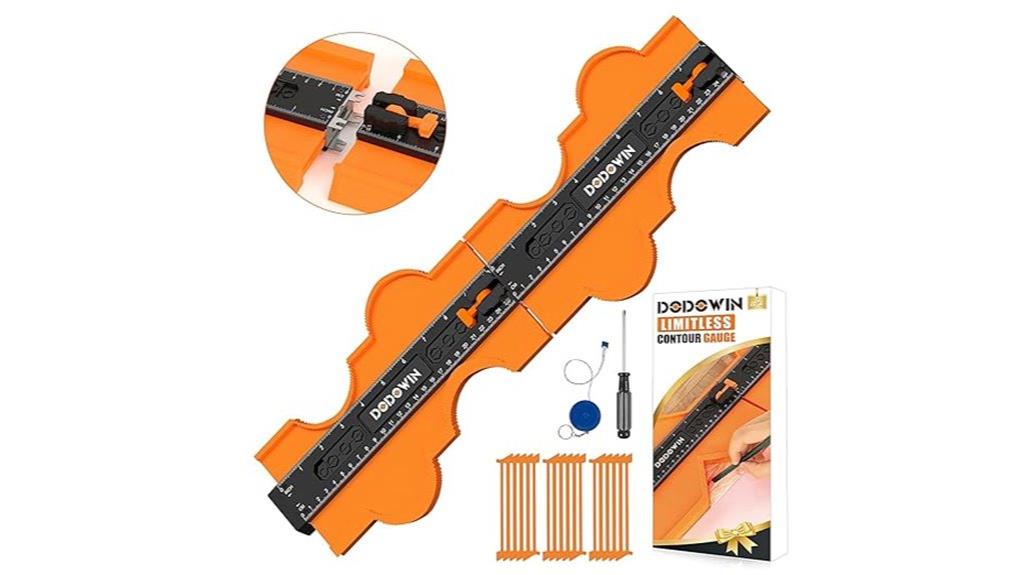

DODOWIN Contour Gauge Profile Tool 20 Inch
For DIY enthusiasts and professional craftsmen tackling complex shapes, the DODOWIN Contour Gauge Profile Tool 20 Inch stands out with its ability to connect multiple gauges seamlessly. This expandable tool allows you to measure irregular shapes across larger areas by splicing gauges together, making it versatile and efficient. It features a double-sided scale with clear inch and centimeter readings for accurate shape replication. Made from durable ABS plastic, it’s tough and resistant to bending. The ultra-thin blades (0.05 inches) enhance precision, and the locking mechanism ensures contours stay fixed during use, providing reliable, secure measurements for a variety of projects.
Best For: DIY enthusiasts and professional craftsmen who need a versatile, precise tool for measuring and replicating irregular shapes across large or complex surfaces.
Pros:
- Supports unlimited connectivity by splicing multiple gauges for larger projects
- Double-sided scale with clear inch and centimeter measurements for accuracy
- Made from durable ABS plastic with ultra-thin blades for precise contour copying
Cons:
- Gaps may appear when gauges are connected in extended configurations
- Some users report missing screws or end brackets in the package
- Perceived cheap feel and concerns about locking security and bending resistance

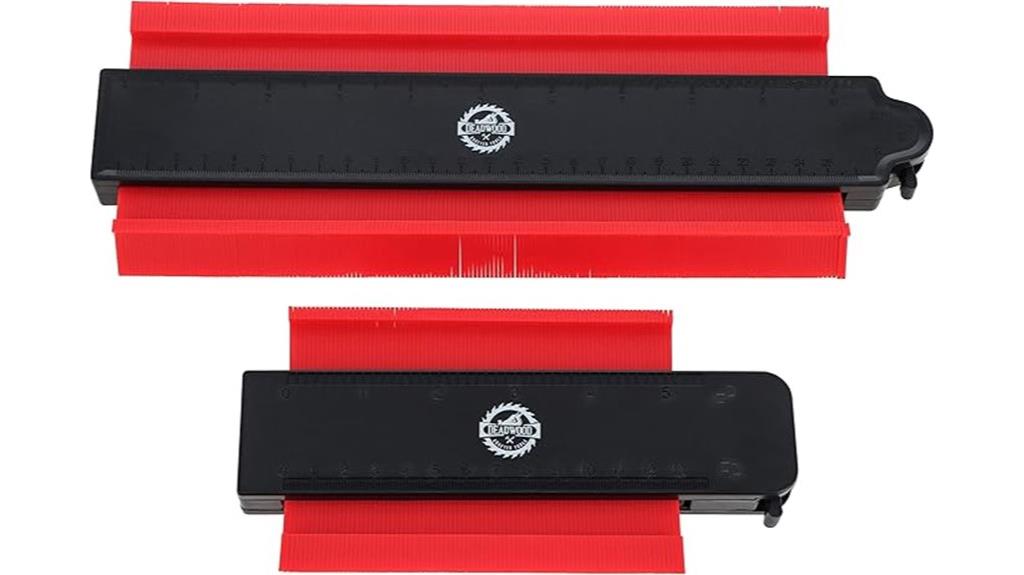

Deadwood Crafted Tools Locking Contour Gauge Tool
If you’re tackling projects that require precise replication of irregular shapes, Deadwood Crafted Tools Locking Contour Gauge Set offers an excellent solution. This set includes two gauges—5-inch and 10-inch—featuring 145 splines for detailed pattern copying. The gauges lock securely with a pin mechanism, ensuring your measurements stay in place during transfer. Their beveled, flat contact surfaces allow for accurate profiling of complex edges and curves. Easy to reset and adjust with a hex key, they’re perfect for flooring, cabinetry, tile, and carpentry work. Made from durable plastic, they’re lightweight and user-friendly, making them a reliable choice for both DIYers and professionals.
Best For: DIY enthusiasts and professionals needing precise, reusable templates for irregular shapes in carpentry, tiling, flooring, and renovation projects.
Pros:
- Features 145 splines for detailed and accurate pattern replication.
- Locking mechanism securely holds shapes in place during transfer.
- Lightweight and durable plastic construction makes it easy to handle and suitable for various tasks.
Cons:
- Locking pins can feel stiff initially and may require some breaking-in.
- Plastic blades are flexible, requiring careful application to avoid distortion.
- The 10-inch gauge’s lock may need minor adjustment for optimal tightness over time.

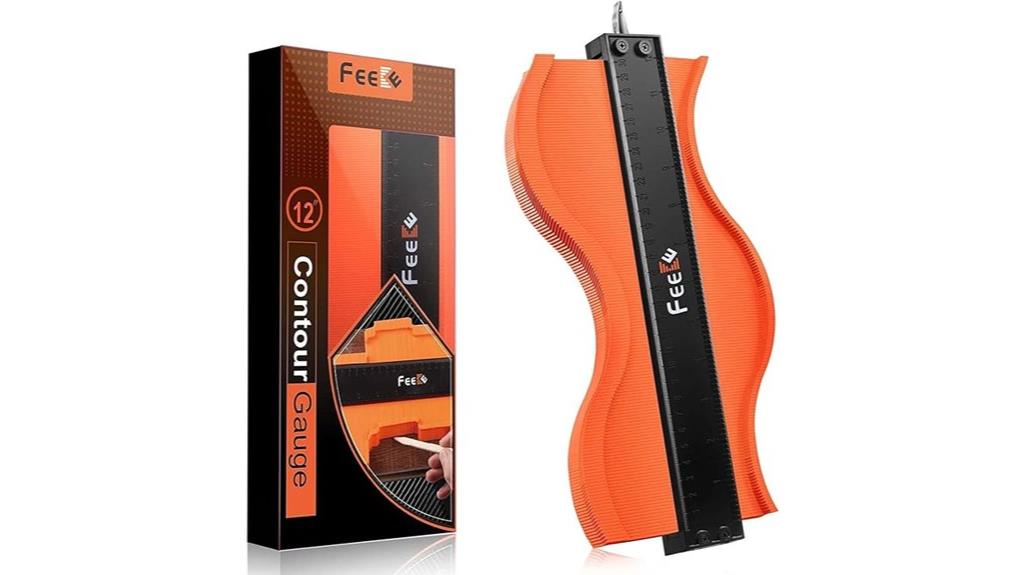

Contour Gauge with Lock, 12 Inch Profile Tool for Woodworking and Construction
Craftsmen and DIY enthusiasts who need precise shape duplication will find the Contour Gauge with Lock, 12 Inch Profile Tool ideal for their projects. Made of durable ABS plastic, it offers high strength and rust resistance, with dual-sided scales for accurate inch and centimeter readings. The adjustable tension lets you customize tightness, and once locked, the teeth hold the shape securely for consistent tracing. Its wider profile and upgraded pins provide high-precision measurements, perfect for woodworking, tiling, and construction tasks. Reusable and versatile, this tool simplifies complex contour copying on pipes, frames, or surfaces, making it an essential part of any workshop or craft kit.
Best For: DIY enthusiasts, woodworkers, and craftsmen seeking precise and reusable contour duplication tools for various construction, carpentry, and crafting projects.
Pros:
- Made of durable ABS plastic with rust resistance, ensuring long-term use.
- Features dual-sided scales with inch and centimeter measurements for accurate readings.
- Locking mechanism maintains shape consistency for repeatable and precise contours.
Cons:
- Over-tightening can cause misalignment of plastic pins, requiring careful adjustment.
- Slightly broader profile may not fit into very tight or narrow spaces.
- Requires manual adjustment with a screwdriver, which may be less convenient for quick measurements.
Contour Gauge with Lock, 10+5 Inch Construction Rulers for Corners and Contours
The Contour Gauge with Lock, 10+5 Inch Construction Rulers, stands out as an ideal choice for both DIY enthusiasts and professionals seeking precise shape duplication. Its wider design allows for accurate copying of complex curves and contours, making it perfect for fitting tiles, laminate, or molding around corners and irregular objects. Made from durable ABS plastic, it’s rustproof and long-lasting, even in demanding environments. The lock feature guarantees measurements stay secure during transfer, simplifying the process of tracing shapes. Whether working on carpentry, remodeling, or automotive projects, this tool offers reliable precision, ease of use, and versatility for a variety of applications.
Best For: DIY enthusiasts, carpenters, and professionals who need precise shape duplication and contour measurement for remodeling, woodworking, automotive, and construction projects.
Pros:
- Wide design allows for accurate copying of complex curves and irregular contours.
- Made from durable, rustproof ABS plastic suitable for demanding environments.
- Lock feature ensures measurements stay secure during transfer, increasing precision.
Cons:
- May be bulkier than smaller, traditional contour gauges, affecting storage portability.
- Requires careful handling to avoid accidental unlocking during use.
- Limited to shapes that fit within its maximum contour length, not ideal for very large or intricate surfaces.

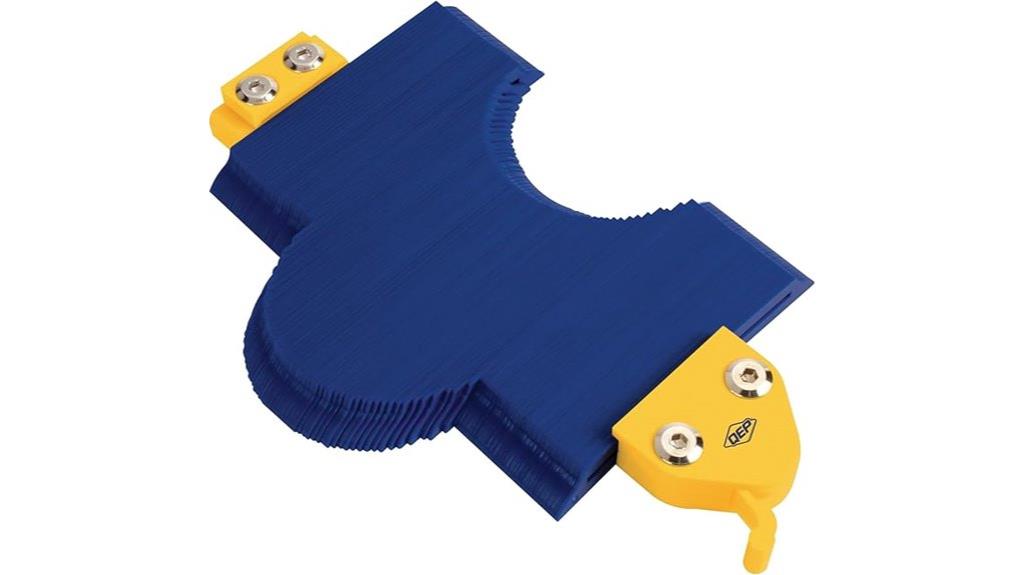

QEP 6 Locking Contour Gauge
When precision and ease of use matter most, the QEP 6 Locking Contour Gauge stands out as an excellent choice. I appreciate its lightweight, portable design that makes shaping and copying irregular objects straightforward. The durable plastic teeth resist rust and deformation, ensuring longevity. Its locking mechanism secures the pattern during tracing, reducing errors and movement. Whether working with vinyl, wood, or tiles, I find it perfect for creating accurate templates for pipes, walls, or conduits. Plus, connecting two units allows me to handle larger curves or angles easily. Overall, it’s a reliable tool that simplifies complex measurements with high precision.
Best For: DIY enthusiasts and professionals needing precise templates for irregular shapes in vinyl, wood, and tiles.
Pros:
- Lightweight and portable for easy handling and transport
- Durable plastic teeth resist rust and deformation for long-term use
- Locking mechanism ensures accurate tracing and reduces errors
Cons:
- Limited to small and medium-sized curves; may require multiple units for very large shapes
- Made of plastic, which may be less sturdy than metal tools for heavy-duty tasks
- May not be suitable for highly detailed or intricate shapes that require finer measurement tools
Factors to Consider When Choosing Contour Gauges Locking
When selecting a contour gauge with locking, I focus on measurement accuracy and the locking mechanism’s reliability to guarantee precise results. I also consider the material’s durability and whether the size and reach fit my projects. Finally, I look for an easy adjustment process to save time and effort during use.
Measurement Accuracy
Choosing a contour gauge with high measurement accuracy starts with inspecting its blades and locking mechanism. Look for slim, precise blades around 0.05 inches thick, which allow capturing even the smallest details accurately. A reliable locking mechanism is essential to prevent shifting once the gauge is set, ensuring consistent measurements. Dual-sided scales in inches and centimeters add versatility and help you read measurements precisely. Additionally, a tension adjustment feature allows fine-tuning for delicate or robust shapes, boosting accuracy. Material quality also matters; durable options like ABS plastic with reinforced locking components help maintain measurement precision over time. By focusing on these factors, you’ll select a contour gauge capable of delivering the accurate, secure measurements you need for any project.
Locking Mechanism Quality
A high-quality locking mechanism is essential for maintaining accurate contours during measurement. It should securely hold the gauge’s shape without slipping or loosening, ensuring precise transfer of irregular profiles. An effective lock is easy to engage and release, allowing quick adjustments that streamline your workflow. Durability matters too—metal or reinforced plastic components withstand frequent use and stay reliable over time. Additionally, an adjustable lock tension feature gives you better control, letting you customize grip strength for different materials and tasks. A dependable locking mechanism prevents shape distortion, which is vital for accurate results. When choosing a contour gauge, prioritize locking features that combine security, ease of use, and durability to get consistent, precise measurements every time.
Material Durability
The durability of a contour gauge depends largely on the quality of its plastic or metal components, which determine how well it withstands regular use and harsh conditions. High-strength ABS plastic offers excellent impact resistance and longevity, making it suitable for frequent use, especially in professional settings. Metal locking mechanisms and pins are generally more resistant to wear and tear than plastic parts, ideal for heavy-duty tasks. The thickness and flexibility of the gauge’s material also play a role, helping it maintain shape and accuracy over time without cracking or deforming. Additionally, exposure to extreme temperatures, moisture, or chemicals can weaken certain materials. Choosing corrosion-resistant and UV-stable options guarantees your contour gauge remains reliable, even in challenging environments.
Size and Reach
Selecting the right size of a contour gauge is essential to accurately measure and duplicate the shapes you’re working with. Common sizes include 5-inch, 10-inch, and 15-inch models, each suited for different projects. Larger gauges can measure wider or more complex shapes but might be less maneuverable in tight spaces. It’s important to match the gauge’s reach to the size of the object or area you’re working on to ensure precise duplication. If the contours are larger, you may need a longer gauge or multiple gauges spliced together. Keep in mind that smaller gauges are easier to handle with one hand and perfect for quick measurements, while longer ones are better suited for extensive or detailed tasks. Choosing the right size helps improve accuracy and efficiency.
Ease of Adjustment
Choosing a contour gauge with easy adjustment features can make your work much smoother. A good gauge should have a tension mechanism that allows for smooth, precise control of the pins or blades without needing special tools. The adjustment process should be simple, typically involving a straightforward screw or knob that tightens or loosens the locking mechanism. This makes switching between shapes quick and effortless. A well-designed locking feature keeps the shape securely in place, preventing shifting during measurement or transfer. The tension control needs to balance stability with ease of movement, so shaping irregular surfaces isn’t cumbersome. Clear, accessible adjustment controls also improve efficiency, especially when you need to frequently change contours, ensuring your work remains accurate and hassle-free.
Versatility of Use
A versatile contour gauge should adapt easily to various shapes and surfaces, making it suitable for a wide range of projects. It needs to measure and duplicate irregular forms like pipes, moldings, and complex profiles accurately. Adjustable lock and tension features enhance this adaptability, allowing me to work with different materials and contour complexities confidently. Compatibility with connectable or extendable models is a real plus, enabling measurements over larger surfaces and more diverse applications. Dual measurement scales in inches and centimeters increase usability across different regions, saving time and reducing errors. The ability to switch between sizes or connect multiple gauges ensures I can handle projects of varying scales without hassle. Overall, versatility guarantees the gauge remains useful across multiple tasks, making it a valuable tool in my workshop.
Blade Precision
Blade precision plays a essential role in ensuring that contour gauges capture and transfer complex shapes accurately. Thinner blades, around 0.05 inches, enable detailed copying, especially in tight or intricate areas. High-quality gauges use durable materials like stainless steel or reinforced plastics, which maintain accuracy over time. The spacing between blades also matters—closer teeth (less than 0.06 inches apart) improve the gauge’s ability to replicate fine details precisely. Additionally, adjustable tension mechanisms help optimize contact pressure, preventing deformation and ensuring consistent measurements. When selecting a contour gauge, pay close attention to blade thickness, material quality, and blade spacing. These factors directly impact measurement fidelity, making it easier to achieve precise, reliable results in your projects.
Price and Value
Have you considered how the price of a contour gauge reflects its overall quality and value? Prices can range from under $10 for basic models to over $30 for professional-grade tools. While budget options may save you money upfront, they often lack durability, precise locking mechanisms, and measurement accuracy. Higher-priced gauges usually feature better materials, more stable locking, and additional features like adjustable tension or extendability, offering better long-term value. It’s also wise to buy from reputable brands with positive reviews to ensure reliability and performance. Comparing similar features across different price points helps you find a model that balances affordability with quality. Ultimately, investing a bit more can provide a contour gauge that’s more accurate, durable, and worth the cost over time.
Frequently Asked Questions
How Durable Are Locking Mechanisms in High-Humidity Environments?
Locking mechanisms in contour gauges are generally quite durable, even in high-humidity environments. I’ve found that quality gauges with sealed or corrosion-resistant parts hold up well over time, preventing rust and sticking. Regular maintenance, like wiping off moisture and applying a light lubricant, can extend their lifespan. So, with proper care, these locking features remain reliable, ensuring accurate measurements regardless of humidity levels.
Can Contour Gauges With Locks Be Used on Irregular or Soft Surfaces?
Using a contour gauge with locks on irregular or soft surfaces is like trying to trace a flowing river—it can be tricky but doable. I’ve found that these gauges work well if you gently press and lock, then carefully trace the shape. Soft surfaces might deform under pressure, so I recommend using light pressure and double-checking the lock to guarantee measurements stay accurate. With patience, you can get reliable results.
Are There Specific Maintenance Tips for Prolonging Locking Feature Lifespan?
To prolong the lifespan of your contour gauge’s locking feature, I recommend cleaning it regularly with a soft cloth to remove dirt and debris. Avoid forcing the lock if it feels stuck, and apply a small amount of lubricant like silicone spray if needed. Store it in a dry place when not in use, and handle it gently to prevent wear and damage, ensuring it stays precise and reliable over time.
Do Locking Contour Gauges Come With Calibration or Adjustment Options?
Locking contour gauges usually don’t come with calibration or adjustment options since they’re designed for accuracy out of the box. I recommend checking the locking mechanism regularly for wear and tear to guarantee it stays precise. If you notice any looseness, tightening or replacing parts might be necessary. Proper maintenance and gentle handling help keep these tools accurate and extend their lifespan, so always store them carefully after use.
How Do Locking Features Impact the Overall Accuracy During Repeated Measurements?
Locking features firmly freeze measurements, fostering fidelity and freeing you from fear of fluctuation. They prevent slippage, ensuring consistent, confident copying of contours during each check. This steadfast stability delivers precise, predictable results with every use, making repeated readings reliable. I find that locking mechanisms considerably enhance accuracy, especially when I need multiple measurements. They eliminate errors caused by accidental movement, giving me peace of mind and perfect precision every time I work.
Conclusion
Choosing the right contour gauge can make all the difference in your projects. But with so many options, how do you pick the perfect one? I’ve shared some top picks, each with unique locking features. Yet, the real question remains—are you ready to discover which gauge will truly elevate your accuracy and confidence? The answer might surprise you—stay tuned, because the best tool for your needs might be closer than you think.
