If you’re looking for the 15 best CNC touch probe tool setters for 2026, I recommend considering wireless options like the Genmitsu Wireless Z-Axis Probe for flexibility, as well as automatic tool setters such as the Z Axis Automatic Tool Setter for accuracy. High-precision contact probes and durable edge finders are also key for precise setups. To make the best choice, you’ll want to weigh compatibility, durability, and ease of installation—stay with me, and I’ll share more details.
Key Takeaways
- The list covers wireless, mechanical, automatic, high-precision, and edge finder CNC touch probes for diverse machining needs.
- Compatibility with systems like Mach3, GRBL, and LinuxCNC ensures broad applicability.
- Top models feature high accuracy (up to 0.001mm) and durability for professional and hobbyist use.
- Installation ease is emphasized with magnetic bases, plug-and-play connections, and standard mounting options.
- The selection highlights tools designed for automatic calibration, wear detection, and dustproof, IP67-rated durability.
| Genmitsu Wireless Z-Axis Probe for CNC Machines |  | Best Wireless | Compatibility: Compatible with GRBL, Mach3, Genmitsu APP | Power Supply Voltage: DC 5–24V | Accuracy (Repeatability): 0.02mm | VIEW LATEST PRICE | See Our Full Breakdown |
| Z Axis Automatic Tool Setter for CNC Machines |  | Best Entry-Level | Compatibility: Compatible with PGFUN 3D Touch Probe | Power Supply Voltage: Not specified | Accuracy (Repeatability): 0.005mm (0.0002 inches) | VIEW LATEST PRICE | See Our Full Breakdown |
| CNC Touch Sensor with Z Axis Probe for Spindles |  | Industrial Compatible | Compatibility: Compatible with BT30/BT40 spindles, LinuxCNC | Power Supply Voltage: DC 24V | Accuracy (Repeatability): ±0.001mm | VIEW LATEST PRICE | See Our Full Breakdown |
| RATTMMOTOR IP65 CNC Router Z Axis Probe (5mm) |  | High Precision | Compatibility: Compatible with Mach3, NC/PLC systems | Power Supply Voltage: DC 5–24V | Accuracy (Repeatability): 0.001mm | VIEW LATEST PRICE | See Our Full Breakdown |
| CNC Probe Tool Setter for 3018 PRO Engraving Machine |  | Best for 3018 | Compatibility: Compatible with CNC 3018 PRO, Grblcontrol (Candle), MACH 3 | Power Supply Voltage: Not specified | Accuracy (Repeatability): Not specified | VIEW LATEST PRICE | See Our Full Breakdown |
| RATTMMOTOR CNC Probe Tool Setter for Milling Machines |  | Easy Setup | Compatibility: Compatible with Mach3, CNC routers, milling machines | Power Supply Voltage: Not specified | Accuracy (Repeatability): Not specified | VIEW LATEST PRICE | See Our Full Breakdown |
| BTER CNC Tool Sensor Gauge for Z Axis |  | Durable Construction | Compatibility: Compatible with CNC routers, engraving machines | Power Supply Voltage: DC 24V | Accuracy (Repeatability): 0.001mm | VIEW LATEST PRICE | See Our Full Breakdown |
| CNCTOPBAOS CF-38 3D Trigger Edge Finder Tool |  | Versatile Use | Compatibility: Compatible with CNC centers, engraving, lathes, mills | Power Supply Voltage: DC 5–24V | Accuracy (Repeatability): ≥0.005mm | VIEW LATEST PRICE | See Our Full Breakdown |
| CNC Router Wireless Z-Axis Probe Tool Setter |  | Long Lifespan | Compatibility: Compatible with CNC routers, machines, engraving | Power Supply Voltage: Powered by CR2032 battery | Accuracy (Repeatability): 0.02mm | VIEW LATEST PRICE | See Our Full Breakdown |
| CNC Z Axis Touch Probe Normally Closed Sensor |  | Reliable Accuracy | Compatibility: Compatible with CNC equipment, most CNC machines | Power Supply Voltage: 24V DC | Accuracy (Repeatability): 0.001mm | VIEW LATEST PRICE | See Our Full Breakdown |
| Fafeicy Z Axes CNC Touch Probe for Milling Machine |  | Compact Design | Compatibility: Compatible with most CNC milling machines | Power Supply Voltage: 24V DC | Accuracy (Repeatability): 0.001mm | VIEW LATEST PRICE | See Our Full Breakdown |
| CNC Tool Sensor Gauge for Z Axis 24V High Accuracy |  | IP67 Waterproof | Compatibility: Compatible with Mach3, NC, PLC controllers | Power Supply Voltage: DC 24V | Accuracy (Repeatability): 0.001mm | VIEW LATEST PRICE | See Our Full Breakdown |
| Touch Tool Setter for CNC Router and Engraving Machines | | Heavy-Duty Performance | Compatibility: Compatible with most CNC equipment | Power Supply Voltage: DC 24V | Accuracy (Repeatability): 0.001mm | VIEW LATEST PRICE | See Our Full Breakdown |
| CNC 3D Touch Probe for Mach3 & GRBL |  | Precise & Rugged | Compatibility: Compatible with GRBL, Mach3, DIY setups | Power Supply Voltage: DC 5–24V | Accuracy (Repeatability): 0.01mm | VIEW LATEST PRICE | See Our Full Breakdown |
| SainSmart CNC Z-Axis Touch Probe for Grbl/Mach 3 |  | User-Friendly | Compatibility: Compatible with Mach3 and Grblcontrol | Power Supply Voltage: 24V DC | Accuracy (Repeatability): Not specified | VIEW LATEST PRICE | See Our Full Breakdown |
More Details on Our Top Picks
-
Z Axis Automatic Tool Setter Modifying Kit for PGFUN CNC 3D Touch Probe Edge Finder Contactor
This is a Z-axis automatic CNC tool setter modifying kit for PGFUN 3D Touch Probe, which is designed...
As an affiliate, we earn on qualifying purchases.
Genmitsu Wireless Z-Axis Probe for CNC Machines
If you’re looking for a reliable and precise wireless touch probe for your CNC router, the Genmitsu Wireless Z-Axis Probe is an excellent choice. It automates surface zero point detection with 0.02mm accuracy, ensuring your first layers are perfect. Compatible with popular control software like GRBL, Mach3, and Genmitsu APP, it streamlines tool setting and improves workflow. Installation is simple, with no soldering required—just connect the included 3-pin cable. Its wireless transmission reaches up to 20 meters, reducing clutter, and it works with various materials, from metal to plastic. Designed with safety in mind, it features impact absorption to protect your tools.
- Compatibility:Compatible with GRBL, Mach3, Genmitsu APP
- Power Supply Voltage:DC 5–24V
- Accuracy (Repeatability):0.02mm
- Material/Build:Not specified (touch plate with spring)
- Max Travel / Stroke:Not specified
- Contact Type:Touch plate with spring protection
- Additional Feature:Wireless transmission up to 20m
- Additional Feature:Compatible with conductive materials
- Additional Feature:Spring-loaded impact absorption
-
Automatic CNC Tool Touch Sensor with Z Probe Presetter Setter Compatible with BT30 BT40 Spindles and 3 4 CNC Machines for Efficient Setup
[HEAVY-DUTY METAL HOUSING] Engineered with an all-metal structure that meets IP67 standards, resistance to oils and cutting fluids...
As an affiliate, we earn on qualifying purchases.
Z Axis Automatic Tool Setter for CNC Machines
The Z Axis Automatic Tool Setter for CNC machines is an ideal choice for hobbyists and entry-level operators looking to streamline their setup process. Designed specifically for the PGFUN CNC 3D Touch Probe, it features a magnetic disc base for quick, easy fixing. This kit enhances the touch probe’s functionality but is limited to PGFUN probes with a 6mm shank, making it unsuitable for industrial use or other probe models. With a tool height of 30mm and an accuracy of 0.005mm, it offers reliable performance for desktop machines. Its compact size and lightweight design make it perfect for simplifying tool measurement and improving workflow in small-scale CNC setups.
- Compatibility:Compatible with PGFUN 3D Touch Probe
- Power Supply Voltage:Not specified
- Accuracy (Repeatability):0.005mm (0.0002 inches)
- Material/Build:Not specified
- Max Travel / Stroke:30mm (1.2 inches)
- Contact Type:Magnetic disc base
- Additional Feature:Magnetic fixing base
- Additional Feature:Designed for PGFUN probes
- Additional Feature:Suitable for entry-level CNC
-
RATTMMOTOR IP65 Blue CNC Router Automatic Tool Sensor Gauge Stroke 5mm, Mach3 CNC Z Axis Probe Tool Touch Setter Changer 0.005mm Accuracy for CNC Engraver Machine (Normally Closed)
✅【NC Normally Closed】Pre-travel: 0; Travel: 5mm; Repeatability: 0.005mm (Condition: Operating speed 50-200mm/min) ; Contact Life: 3 million cycles...
As an affiliate, we earn on qualifying purchases.
CNC Touch Sensor with Z Axis Probe for Spindles
For professionals seeking precise and reliable setup tools, the CNC Touch Sensor with Z Axis Probe for Spindles offers a standout solution. Designed for efficiency, it’s compatible with BT30/BT40 spindles and supports 3- and 4-axis CNC machines, including LinuxCNC control systems. Its all-metal housing meets IP67 standards, resisting oils, cutting fluids, and extreme temperatures from -10°C to 60°C. Made from durable cemented carbide, it boasts up to 3 million contact cycles. With a trigger accuracy of ±0.001mm and repeatability of 0.001mm, it ensures quick zero point positioning, reducing errors and boosting machining precision.
- Compatibility:Compatible with BT30/BT40 spindles, LinuxCNC
- Power Supply Voltage:DC 24V
- Accuracy (Repeatability):±0.001mm
- Material/Build:All-metal housing, cemented carbide contact
- Max Travel / Stroke:No pre-travel, 5mm travel
- Contact Type:All-metal contact, normally closed
- Additional Feature:IP67 waterproof housing
- Additional Feature:Long 1.6m oil-resistant cable
- Additional Feature:Made from cemented carbide
RATTMMOTOR IP65 CNC Router Z Axis Probe (5mm)
Designed with durability and precision in mind, the RATTMMOTOR IP65 CNC Router Z Axis Probe (5mm) is an ideal choice for professionals seeking reliable tool setting on CNC machines. Its high-precision measurement with 0.005mm repeatability ensures accurate tool positioning, essential for detailed machining. The IP65 dustproof design, super-hard alloy tooling surface, and stainless steel cable sheath make it highly durable and resistant to harsh environments. It operates in NC normally closed mode, providing over-travel alarms without external amplifiers. With a 5mm travel, contact force of 1N, and a lifespan of 3 million cycles, it offers consistent, long-lasting performance for demanding CNC applications.
- Compatibility:Compatible with Mach3, NC/PLC systems
- Power Supply Voltage:DC 5–24V
- Accuracy (Repeatability):0.001mm
- Material/Build:Not specified
- Max Travel / Stroke:5mm
- Contact Type:Normally closed BNC output
- Additional Feature:Dustproof IP65 rating
- Additional Feature:Aluminum alloy construction
- Additional Feature:Supports direct PLC input
CNC Probe Tool Setter for 3018 PRO Engraving Machine
If you’re working with the 3018 PRO engraving machine, the CNC probe tool setter from Eujgoov offers a reliable solution to improve your machining accuracy. This device automates tool checking and calibration, ensuring precise and consistent results. Made from durable alloy steel and ABS, it resists wear and lasts through heavy use. Its straightforward operation allows you to activate the probe easily, which then automatically returns the machine to a set position for quick tool changes. Compatible with systems like Grblcontrol and MACH 3, it’s perfect for both professional and hobbyist workshops aiming for high-quality, reliable machining.
- Compatibility:Compatible with CNC 3018 PRO, Grblcontrol (Candle), MACH 3
- Power Supply Voltage:Not specified
- Accuracy (Repeatability):Not specified
- Material/Build:Alloy steel, ABS
- Max Travel / Stroke:Approx. 5mm
- Contact Type:Touch plate probe, automatic contact
- Additional Feature:No batteries needed
- Additional Feature:Easy tool calibration
- Additional Feature:Compact size (4.72×3.54×0.79 in)
RATTMMOTOR CNC Probe Tool Setter for Milling Machines
The RATTMMOTOR CNC Probe Tool Setter stands out as an excellent choice for anyone seeking precise and reliable Z-axis calibration on milling and engraving machines. It’s compatible with CNC routers, milling, and engraving equipment, working seamlessly with Mach3 software for accurate tool setting. The Z-axis touch plate ensures quick, precise calibration, improving workflow efficiency. Its 30mm effective surface diameter makes it easy to use and reliable across various tasks. Designed for automatic tool length measurement, it helps streamline setup and enhances accuracy during milling and routing. Overall, it’s a valuable addition for any workshop aiming for better precision and faster setup times.
- Compatibility:Compatible with Mach3, CNC routers, milling machines
- Power Supply Voltage:Not specified
- Accuracy (Repeatability):Not specified
- Material/Build:Alloy steel, durable casing
- Max Travel / Stroke:30mm
- Contact Type:Magnetic base, contact sensor
- Additional Feature:Suitable for milling and routing
- Additional Feature:High accuracy measurement
- Additional Feature:Quick tool height measurement
BTER CNC Tool Sensor Gauge for Z Axis
The BTER CNC Tool Sensor Gauge for Z Axis stands out with its high-precision 0.001mm repeat positioning accuracy, making it an excellent choice for CNC operators who require exact tool length measurement. Its design is tailored for CNC routers and engraving machines, offering automatic detection of tool length, wear, and breakage. With a 5mm stroke and a durable cemented carbide construction, it resists dust, water, coolant, and iron filings. The magnetized bottom ensures secure attachment, and its normally closed design guarantees reliable operation. Overall, this sensor enhances efficiency, reduces manual adjustments, and helps maintain consistent tool performance.
- Compatibility:Compatible with CNC routers, engraving machines
- Power Supply Voltage:DC 24V
- Accuracy (Repeatability):0.001mm
- Material/Build:Cemented carbide, metal body
- Max Travel / Stroke:5mm
- Contact Type:Cemented carbide contact, normally closed
- Additional Feature:Cemented carbide tip
- Additional Feature:Magnetized bottom for attachment
- Additional Feature:Dust, water, coolant resistant
CNCTOPBAOS CF-38 3D Trigger Edge Finder Tool
Designed for precision and durability, the CNCTOPBAOS CF-38 3D Trigger Edge Finder Tool is ideal for professionals who need reliable edge detection across various CNC machines. Its compact design makes it versatile for CNC centers, engraving machines, lathes, and mills. The device supports probe directions in ±X, ±Y, and +Z axes, with a repeat accuracy of at least 0.005mm and a trigger lifespan of up to 3 million cycles. Built with waterproof, dustproof features, and gold-plated components, it guarantees long-term reliability. Tungsten steel and ruby tips enhance precision, while its user-friendly size simplifies complex measurement tasks.
- Compatibility:Compatible with CNC centers, engraving, lathes, mills
- Power Supply Voltage:DC 5–24V
- Accuracy (Repeatability):≥0.005mm
- Material/Build:Tungsten steel, waterproof, dustproof
- Max Travel / Stroke:5mm
- Contact Type:Tungsten steel, contact detection
- Additional Feature:Multi-directional probe support
- Additional Feature:Gold-plated contact surface
- Additional Feature:Long lifespan (3 million cycles)
CNC Router Wireless Z-Axis Probe Tool Setter
If you’re looking to streamline your CNC routing workflows, the NymoLabs Wireless Z Probe stands out with its high-precision measurement capabilities, offering accuracy up to 0.02mm. It provides reliable Z-axis tool setting for CNC routers and machines, ensuring precise alignments for detailed engraving and machining tasks. Its plug-and-play design supports a wide range of CNC systems like GRBL and Mach3, and its wireless operation eliminates cable clutter, enhancing workspace cleanliness and flexibility. Made from durable SUS304 stainless steel, it maintains high accuracy over time. Powered by a single CR2032 battery, it can perform up to 3,000 operations, making it a reliable, maintenance-free choice.
- Compatibility:Compatible with CNC routers, machines, engraving
- Power Supply Voltage:Powered by CR2032 battery
- Accuracy (Repeatability):0.02mm
- Material/Build:SUS304 stainless steel, precision-machined
- Max Travel / Stroke:Not specified
- Contact Type:Contact tip with tungsten steel ball
- Additional Feature:Stainless steel contact plate
- Additional Feature:Long battery life (3,000 ops)
- Additional Feature:Stable wireless operation
CNC Z Axis Touch Probe Normally Closed Sensor
For those seeking high precision in CNC machining, the CNC Z Axis Touch Probe with a normally closed sensor stands out as an ideal choice. It’s designed for compatibility with most CNC machines and operates on 24V DC power. The probe features a durable cemented carbide construction with a magnetic bottom for quick attachment. Its high accuracy of 0.001mm ensures precise tool setting, while the waterproof design and tough materials let it withstand coolant and debris. The normally closed sensor simplifies installation and reliable operation. Overall, this tool setter offers durability, accuracy, and ease of use, making it a valuable addition to any CNC setup.
- Compatibility:Compatible with CNC equipment, most CNC machines
- Power Supply Voltage:24V DC
- Accuracy (Repeatability):0.001mm
- Material/Build:Cemented carbide, waterproof casing
- Max Travel / Stroke:Not specified
- Contact Type:Cemented carbide tip, magnetic attachment
- Additional Feature:Waterproof, durable design
- Additional Feature:Strong magnetic bottom
- Additional Feature:Precise 0.001mm accuracy

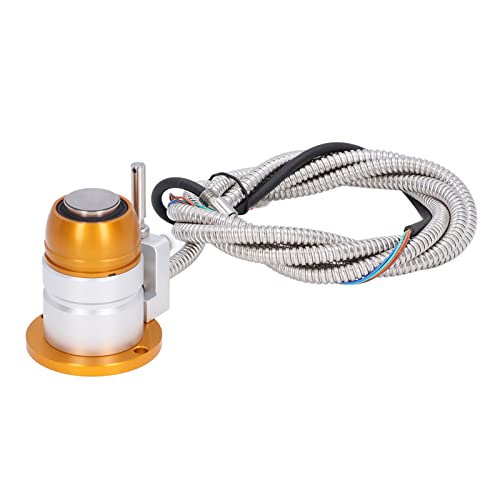

Fafeicy Z Axes CNC Touch Probe for Milling Machine
The Fafeicy Z Axes CNC Touch Probe stands out for its high measurement accuracy, delivering repeated positioning precision of 0.001mm, which is essential for achieving precise tool settings on milling machines. Its cemented carbide tip offers exceptional hardness and wear resistance, ensuring long-lasting, accurate measurements. The magnetic mounting base provides a secure, stable attachment to the machine, promoting reliable operation during measurements. Designed with a sealed, dust-resistant structure, it withstands environments with coolant and metal filings. Equipped with a versatile cable, it’s compatible with most CNC milling machines, routers, and lathes, making it a versatile choice for precise tool positioning.
- Compatibility:Compatible with most CNC milling machines
- Power Supply Voltage:24V DC
- Accuracy (Repeatability):0.001mm
- Material/Build:Cemented carbide, magnetic base
- Max Travel / Stroke:Approx. 5mm
- Contact Type:Contact tip, magnetic base
- Additional Feature:Cemented carbide probe tip
- Additional Feature:Magnetic mounting base
- Additional Feature:High repeated positioning accuracy
CNC Tool Sensor Gauge for Z Axis 24V High Accuracy
Designed for demanding CNC machining environments, the CNC Tool Sensor Gauge for Z Axis with 24V power and high accuracy stands out as an essential tool for professionals seeking precise and reliable measurements. It supports tool length setting, wear detection, and breakage monitoring by transmitting signals directly to the control system. Its high-precision 4-wire sensor offers a 5mm stroke and 0.001mm accuracy, ensuring consistent performance. Built with durable cemented carbide and IP67 protection, it withstands dust, water, coolant, and filings. The robust magnetic base simplifies installation, while the included cable guarantees compatibility with most CNC machines—maximizing efficiency and precision in your workflow.
- Compatibility:Compatible with Mach3, NC, PLC controllers
- Power Supply Voltage:DC 24V
- Accuracy (Repeatability):0.001mm
- Material/Build:Durable materials, IP67 waterproof
- Max Travel / Stroke:5mm
- Contact Type:Normally closed high-precision sensor
- Additional Feature:IP67 dustproof/waterproof
- Additional Feature:3 million cycle lifespan
- Additional Feature:Easy installation with magnet
Touch Tool Setter for CNC Router and Engraving Machines
If you operate CNC routers or engraving machines, a touch tool setter with a strong magnetic grip and durable construction can markedly boost your workflow. I recommend one made from aluminum alloy and cemented carbide, ensuring wear resistance and longevity. Its magnetic bottom guarantees stable attachment, while advanced sealing protects against coolant and iron filings. With a high repeat accuracy of 0.001mm and a lifespan of around 3 million cycles, it’s reliable for demanding tasks. Compatible with most CNC equipment, it streamlines tool setting, enhances precision, and reduces downtime. This robust, easy-to-use tool is essential for achieving consistent, high-quality results in your machining projects.
- Compatibility:Compatible with most CNC equipment
- Power Supply Voltage:DC 24V
- Accuracy (Repeatability):0.001mm
- Material/Build:Aluminum alloy, cemented carbide tip
- Max Travel / Stroke:Approx. 5mm
- Contact Type:Cemented carbide contact, NC output
- Additional Feature:Aluminum alloy body
- Additional Feature:Sealed, dust-resistant
- Additional Feature:High lifespan (3 million cycles)
CNC 3D Touch Probe for Mach3 & GRBL
CNC 3D Touch Probes for Mach3 & GRBL are ideal for DIY enthusiasts and small workshop operators seeking precise, easy-to-use tool setters. They connect directly to GRBL control boards or Mach3 systems, enabling quick machine zeroing, edge detection, shape identification, and workbench measurement. With a power supply of DC 5-24V and a repeatability of 0.01 mm, they ensure accurate results. The three-wire setup features indicator lights and a signal output that switches when triggered. Made from durable materials like stainless steel and aluminum, these probes are designed for reliability and simplicity, making them perfect for non-industrial applications.
- Compatibility:Compatible with GRBL, Mach3, DIY setups
- Power Supply Voltage:DC 5–24V
- Accuracy (Repeatability):0.01mm
- Material/Build:Stainless steel, aluminum shell
- Max Travel / Stroke:2mm to 4mm (over-travel protection)
- Contact Type:Stainless steel probe tip
- Additional Feature:Over-travel protection
- Additional Feature:Anti-roll flat surface
- Additional Feature:Stainless steel probe tip
SainSmart CNC Z-Axis Touch Probe for Grbl/Mach 3
The SainSmart CNC Z-Axis Touch Probe stands out as an ideal choice for users seeking precise and automated tool height calibration on their CNC machines. It’s compatible with Mach3 and Grblcontrol, making setup straightforward. The probe automates measurements with its auto-check feature, ensuring accurate tool height adjustments without manual paper-based methods. It allows your CNC to return to predefined positions with just a click, streamlining your workflow. This touch probe simplifies tool changes and calibration, saving time and increasing efficiency. Designed for seamless integration, it enhances your machining accuracy and makes setup more reliable, giving you confidence in every project.
- Compatibility:Compatible with Mach3 and Grblcontrol
- Power Supply Voltage:24V DC
- Accuracy (Repeatability):Not specified
- Material/Build:Aluminum alloy, cemented carbide tip
- Max Travel / Stroke:Approx. 5mm
- Contact Type:Cemented carbide tip, normally closed
- Additional Feature:Supports auto-calibration
- Additional Feature:Compatible with Mach3/Grbl
- Additional Feature:Simplifies tool height setting

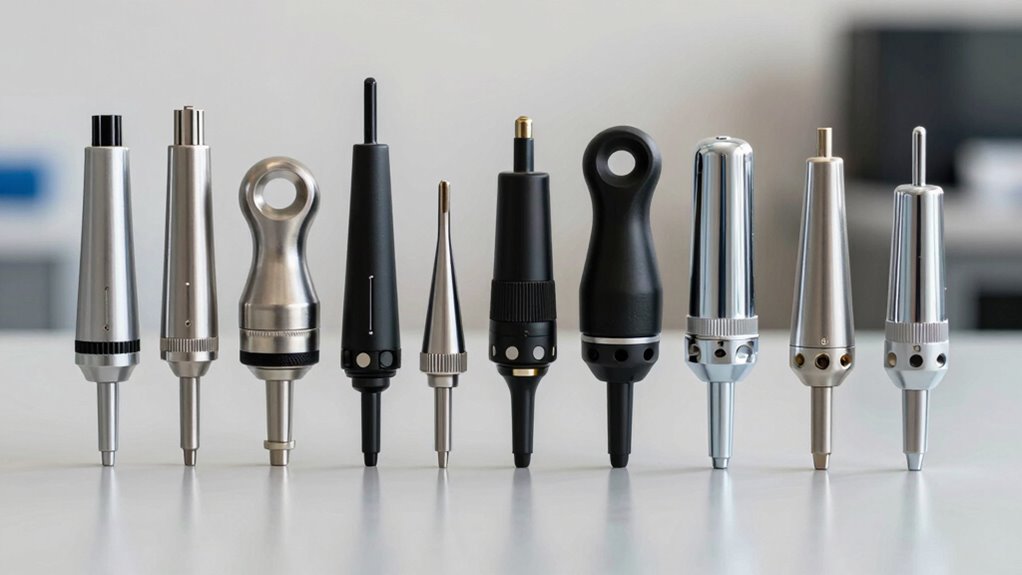

Factors to Consider When Choosing a CNC Touch Probe Tool Setter
When choosing a CNC touch probe, I consider how well it fits my machine’s compatibility and the level of measurement accuracy I need. I also weigh the convenience of wireless versus wired options and how durable the material is for long-term use. Finally, ease of installation plays a big role in making sure I can set it up quickly and reliably.
Compatibility With Machines
Choosing a compatible CNC touch probe tool setter requires careful attention to your machine’s specifications. First, verify that the probe works with your specific machine model and control system, whether it’s GRBL, Mach3, or LinuxCNC. Next, check the mounting method and connection type—are magnetic bases, cables, or other mounting options compatible with your setup? Confirm the operating voltage range, like 5V or 24V, matches your CNC’s power supply to prevent damage. Additionally, verify the probe’s interface—normally open, normally closed, NPN, or PNP—aligns with your machine’s input requirements. Finally, review the physical dimensions and mounting hole compatibility to ensure it fits easily into your designated tool holder or probe mount. Proper compatibility guarantees smooth integration and accurate operation.
Measurement Accuracy Levels
Measurement accuracy levels in CNC touch probes are crucial because they directly influence the precision of your tool setup. Generally, accuracy ranges from ±0.001mm to ±0.02mm, impacting how precisely you can position tools and workpieces. Higher accuracy probes typically feature more sensitive contact mechanisms and better materials, but they also tend to cost more. The repeatability of a probe’s measurements—its ability to produce consistent results—is equally important and is often measured in micrometers. Environmental factors like temperature changes, vibrations, and electrical noise can also affect measurement precision during operation. Choosing a probe with an accuracy level that matches your machining needs helps ensure peak performance and minimizes setup errors. Balancing cost, accuracy, and environmental robustness is key to selecting the right tool setter.
Wireless vs Wired Options
Wireless CNC touch probes offer unmatched flexibility by eliminating cable clutter and allowing me to move freely around my workspace, supporting transmission distances of up to 20 meters. This freedom is especially useful in dynamic environments where mobility is key. However, wireless options usually rely on batteries, which need regular replacement, adding to maintenance. Wired probes, on the other hand, provide more stable signals and are less susceptible to interference, making them ideal for environments with high electrical noise. They also benefit from lower latency and quicker response times, vital for high-precision tasks. Ultimately, choosing between wireless and wired depends on my workspace layout, environmental conditions, and whether I prioritize mobility or signal stability.
Material Durability
Material durability plays a crucial role in guaranteeing the long-term reliability of CNC touch probe tool setters. I look for probes made from high-hardness materials like cemented carbide or alloy steel because they resist wear and deformation better than softer options. The material’s ability to withstand environmental factors—such as coolant, oil, dust, and metal filings—is essential for maintaining accuracy over time. I also pay attention to IP67 or higher ratings, which indicate the probe can handle harsh machining conditions without performance loss. High wear resistance on contact surfaces, often achieved through surface treatments, ensures consistent accuracy across millions of cycles. Choosing a probe with durable, hardened materials means a longer lifespan, fewer replacements, and less downtime, ultimately saving me time and money.
Ease of Installation
When selecting a CNC touch probe tool setter, ease of installation should be a top priority because a complicated setup can lead to delays and frustration. I look for probes compatible with my machine’s control system, like Mach3 or LinuxCNC, to ensure seamless integration. Modern probes with plug-and-play connectors make installation straightforward, avoiding the need for soldering or cutting. Clear wiring diagrams and connectors, such as open-header cables, help me connect everything quickly and accurately. Additionally, I check if the probe includes mounting accessories or adapters that fit my spindle or tool holder securely. Wireless options or minimal cabling are also attractive, as they reduce clutter and make setup less cumbersome. Overall, a simple, well-documented installation process saves time and minimizes errors.
Power Requirements
Choosing the right power requirements for a CNC touch probe tool setter is crucial because inconsistent or inadequate power can lead to measurement errors or device failure. Most probes operate on DC 5V to 24V, so it’s important to match the power supply to your model’s specifications. Stability is key—fluctuating voltage can cause inaccurate readings or damage. Some probes use dedicated batteries, like CR2032 coin cells, which can last up to 3,000 operations, offering portability and ease of use. Compatibility with your CNC control system, whether Mach3, GRBL, or LinuxCNC, also influences power needs. Proper voltage regulation and power management are essential to maintain accuracy and extend the device’s lifespan, ensuring reliable performance over time.
Environmental Resistance
Environmental resistance is essential for ensuring your CNC touch probe tool setter performs reliably in demanding conditions. I look for probes with an IP67 or higher rating, which guarantees waterproof and dustproof protection. Using materials like cemented carbide and stainless steel boosts resistance to corrosion, wear, and temperature changes, extending the probe’s lifespan. A sealed, dust-resistant housing keeps debris, coolant, and machining residues from compromising accuracy and sensor integrity. These features ensure stable operation even when exposed to cutting fluids, iron filings, or other harsh residues. High environmental resistance not only enhances reliability but also reduces maintenance needs. Selecting a probe with these qualities means consistent, precise measurements over time, no matter how tough the environment gets.
Frequently Asked Questions
How Compatible Are These Probes With Different CNC Machine Brands?
These probes are generally compatible with many CNC machine brands, but it’s not universal. I always check the specifications to make certain the probe fits my machine’s control system and port type. Some probes come with adapters or universal connectors, which help broaden compatibility. If you’re unsure, I recommend consulting the manufacturer’s guidelines or customer support to confirm the probe will work seamlessly with your CNC machine.
What Maintenance Is Required for Long-Term Accuracy?
To keep my CNC touch probe set accurate over time, I regularly clean it with a soft cloth to remove dust and debris. I also check the connections and calibration periodically, especially after heavy use or if I notice inconsistent readings. Lubricating moving parts, if applicable, helps reduce wear. Ultimately, I store it in a safe, dry place to prevent corrosion and damage, ensuring consistent precision for my projects.
Can These Probes Be Used for Non-Metallic Materials?
Think of these probes as versatile tools in your machining toolkit. Yes, they can be used for non-metallic materials like plastics and composites, but with some caution. I recommend adjusting the sensitivity settings to avoid false triggers or damage. Using them properly, you’ll find that these probes expand your capabilities, turning your CNC machine into a flexible artist, capable of handling a variety of materials with precision and confidence.
What Is the Typical Installation Process for These Tool Setters?
I typically install CNC touch probe tool setters by first turning off the machine and removing the existing tool holder. Then, I carefully mount the probe into the designated holder, ensuring it’s securely tightened. Next, I connect the probe’s wiring to the machine’s control unit, following the manufacturer’s instructions. Finally, I power up the machine, run a calibration test, and adjust settings as needed for precise measurements.
Are There Wireless Options Available for All Probe Types?
Yes, wireless options are available for some probe types, but not all. I’ve seen wireless touch probes mainly for portable or portable-friendly setups, offering convenience and reduced clutter. However, traditional wired probes still dominate in precision and reliability, especially for high-accuracy machining. So, if you’re looking for wireless, check compatibility and specific features for your machine and probe type, since options vary widely.
Conclusion
Choosing the right CNC touch probe tool setter can transform your machining experience from good to legendary. With options like wireless probes and automatic setters, you’ll be well-equipped to achieve precision that feels almost magical. Remember, the perfect tool isn’t just a choice—it’s a game-changer that can elevate your projects to extraordinary heights. Trust me, investing in the right probe will make your CNC journey smoother and more awe-inspiring than you ever imagined.
