If you’re looking to enhance your CNC machine’s performance, a CNC controller upgrade kit offers a straightforward way to improve precision, speed, and reliability. The best overall pick, the RATTMMOTOR 3 Axis CNC Controller Kit, balances ease of use with solid performance, making it ideal for most users. For those seeking high power, the 3 Axis Nema 34 Closed Loop Stepper Motor Kit delivers exceptional torque, though at a higher cost. Meanwhile, the Genmitsu Close-Loop Stepper Motor Set stands out for its advanced closed-loop design tailored for PROVerXL models. Keep in mind that tradeoffs often involve balancing power, compatibility, and price—higher performance kits tend to be more complex or costly. Continue reading for a detailed breakdown of these options and more to find your perfect fit.
Get tools and workshop supplies delivered free — and shop member deals
- Fast, free delivery on millions of items
- Access to Prime Big Deal Days deals on October 6–7
- Prime Video, Amazon Music and more included
Complete the kit
Key Takeaways
- The top picks balance performance, ease of installation, and compatibility with popular CNC machines.
- Closed-loop systems offer higher precision and reduced missed steps but come with increased cost and complexity.
- Powerful Nema 34 kits excel for heavy-duty applications but may require additional wiring and setup knowledge.
- Budget-friendly options like the Genmitsu set provide good upgrades for beginners or light use.
- Compatibility with existing machine hardware and software is critical to ensure seamless upgrades without additional modifications.
More Details on Our Top Picks

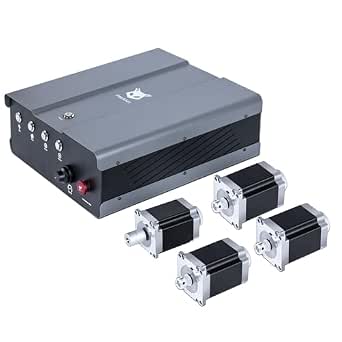

FoxAlien NEMA23 Stepper Motor Upgrade Kit for Masuter 3 – 4PCS 57-76 Open-Loop Motors with DM542 Drivers and Controller Box
This kit stands out for delivering robust torque and high-speed operation, making it ideal for users upgrading existing CNC machines like the Masuter 3. Compared to the RATTMMOTOR 3 Axis CNC Controller Kit, the FoxAlien package includes four motors and a dedicated controller box, offering a more integrated upgrade experience. Its open-loop design means it lacks feedback, which might be a concern for applications requiring maximum precision. However, the high torque of 2.2 Nm and support for speeds up to 8000mm/min provide reliable performance for engraving and milling tasks. The included drag chain cables and straightforward setup make it appealing for those seeking a comprehensive upgrade without additional purchases. The main tradeoff is needing extra aluminum panels if used with Masuter Pro, which could complicate installation for some users.
Pros:- High torque of 2.2 Nm ensures strong, precise movement
- Includes all necessary components for a complete upgrade
- Supports high-speed operation up to 8000mm/min
- Stable and quiet performance with independent drivers
Cons:- Requires additional aluminum panels for Masuter Pro compatibility
- Open-loop motors lack feedback, limiting precision in some applications
Best for: Hobbyists and professionals seeking a reliable, high-torque upgrade for Masuter 3 or Masuter Pro CNC machines
Not ideal for: Beginners without experience in handling open-loop systems or DIY assembly, due to the need for additional modifications and setup
- Torque:2.2 Nm
- Motor Size:NEMA 23
- Number of Motors:4
- Max Speed:8000mm/min
- Included Components:4PCS open-loop stepper motors, controller box, drag chain cables
- Model:OL5776
Our verdict“This kit is well-suited for experienced users upgrading CNCs needing high torque and speed, accepting some extra assembly work.”
RATTMMOTOR 3 Axis CNC Controller Kit with Nema23 Stepper Motor and TB6600 Driver
This kit offers a versatile control solution with high torque and multiple safety features, making it ideal for users wanting precise machine control. Compared to the CNCTOPBAOS 3 Axis GRBL Controller, the RATTMMOTOR kit supports a 4-axis setup and includes a powerful TB6600 driver, enhancing control flexibility. Its compatibility with different software and automation features like emergency stop and limit switches make it suitable for more complex projects. However, complex wiring and the absence of detailed instructions may challenge beginners. The 3A current and high torque of 270oz-in provide smooth, reliable operation, but the setup demands some technical skills. This kit targets users who value control and safety over plug-and-play simplicity.
Pros:- Supports up to 4 axes with high precision
- High torque of 270oz-in ensures smooth machining
- Includes safety features like emergency stop and limit switches
- USB interface allows direct connection to PCs
Cons:- Complex wiring may be difficult for novices
- Limited detailed instructions included
- Requires compatible software like Mach3 for full functionality
Best for: Intermediate to advanced users upgrading CNC machines requiring high torque and extensive automation options
Not ideal for: Absolute beginners or hobbyists looking for quick, simple installations, as wiring and setup can be intricate
- Motor Type:Nema23 Stepper Motor
- Motor Current:3A
- Motor Torque:270oz-in (180N.cm)
- Number of Axes:3
- Driver Model:TB6600
- Control Card:4-Axis Linkage Control Card
Our verdict“This kit excels for users wanting detailed control and automation, accepting a steeper learning curve for setup.”
CNCTOPBAOS 3 Axis GRBL 1.1f USB CNC Engraving Machine Controller Board 24V
This controller board provides a solid upgrade option compatible with multiple engraving machines, making it suitable for users looking to modernize their existing setups. Compared with the RATTMMOTOR kit, the CNCTOPBAOS board emphasizes software flexibility with support for GRBL Control, Candle, and Universal Gcode Sender. It offers multiple ports for emergency stop, probe, and limit switches, enhancing safety and control. However, it’s less plug-and-play, requiring manual connection, driver setup, and configuration, which could be daunting for less experienced users. Its compatibility with various Windows systems makes it versatile for different software environments. This pick favors those willing to handle setup complexity for broader system compatibility and upgrade options.
Pros:- Supports multiple engraving machine models
- Compatible with popular control software
- Multiple safety and control ports
- Supports Windows XP through 10
Cons:- Requires manual wiring and driver installation
- Limited information on build quality
- Not ideal for users unfamiliar with setup procedures
Best for: Experienced hobbyists and professionals wanting a customizable, multi-machine control solution
Not ideal for: Beginners seeking a straightforward, plug-and-play upgrade, due to manual setup requirements
- Input Voltage:24VDC
- Support Software:GRBL Control, Candle, Universal Gcode Sender
- Support System:Windows XP/7/8/10
- Motor Support:XYZ three-axis, 12V, 2A motors
- Ports:Emergency stop, probe, limit switches
Our verdict“This controller offers great flexibility for experienced users willing to manage manual setup and configuration.”
Daedalus 3018 CNC Upgrade Kit for X-Axis and Y-Axis Extension
This upgrade kit significantly increases the working size of a 3018 Pro series CNC router, making it a practical choice for users needing larger projects. Compared with the other kits, it focuses on mechanical extension rather than electronic control upgrades, which means it’s best for those who already have a control system in place. Its extension of the Y-axis and upgraded X-axis components enhance performance and usability. The assembly process is straightforward, but the lack of detailed instructions and limited compatibility to specific models means it’s less suitable for complete beginners or those with incompatible machines. It offers a cost-effective way to boost capacity, but at the expense of advanced control features.
Pros:- Extends the working area considerably
- Easy to assemble with compatible models
- Upgrades X and Y axes for better performance
- Affordable solution for size expansion
Cons:- Requires specific components like ∅8 mm T8 lead screw
- Limited to certain CNC models
- No detailed installation instructions included
Best for: DIY CNC owners wanting to increase their machine’s size without complex electronics changes
Not ideal for: Users seeking a full electronic upgrade or compatibility with non-3018 Pro models, due to specific component requirements
- Weight:8.05 pounds
- Package Dimensions:19 x 11 x 2 inches
- Model Number:21
- Size:With work panel
Our verdict“Ideal for enlarging your CNC workspace with straightforward assembly, provided your machine matches compatibility requirements.”
3 Axis Nema 34 Closed Loop Stepper Motor Kit 12Nm / 1700oz.in with Encoder, Driver, and Power Supply for CNC and 3D Printing
This high-torque Nema 34 kit elevates CNC and 3D printing with its encoder feedback and closed-loop design, making it suitable for demanding applications. Compared with the open-loop FoxAlien kit, this system provides feedback to improve accuracy and reduce missed steps, ideal for precision tasks. Its 12Nm torque exceeds most other options in this roundup, delivering substantial power for larger or more complex projects. The separate power supply and driver require more technical setup, which may challenge beginners, but the system’s protection features and encoder support offer enhanced reliability. This upgrade is best for advanced users aiming for maximum precision and power, accepting the complexity of installation.
Pros:- High torque of 12Nm supports heavy-duty machining
- Encoder feedback improves accuracy and reliability
- Protection features enable safe operation
- Suitable for automation and complex projects
Cons:- Requires technical setup with separate power supply and driver
- Larger size demands more installation space
- More complex wiring and configuration
Best for: Professionals or experienced hobbyists demanding high torque, accuracy, and automation in CNC or 3D printing projects
Not ideal for: Beginners or users seeking a simple, all-in-one upgrade, as it involves complex wiring and multiple component integrations
- Holding Torque:12N.m / 1700oz.in
- Rated Current:6A
- Peak Current:8A
- Step Angle:1.8 degrees
- Encoder lines:1000
- Power Supply:400W, 60VDC
Our verdict“This kit is perfect for power users needing maximum torque and precision, with a willingness to handle complex setup procedures.”
3 Axis Nema23 Stepper Motor Driver USB Mach3 Board CNC Controller Kit 2.8Nm
This kit stands out for its combination of high torque and flexible microstepping, making it suitable for demanding milling and engraving tasks. Compared with the RATTMMOTOR CNC Controller Kit, it offers a more robust motor with higher torque, but it demands more technical skill for setup. Its support for high subdivision microstepping results in smoother, quieter operation—ideal for precise work—yet, the assembly process can be challenging for beginners. The inclusion of a comprehensive control board and all essential components makes it a strong choice for those needing a complete upgrade, especially if running on Windows systems without driver fuss. However, the price and technical complexity may be off-putting for hobbyists new to CNC upgrades.
Pros:- Supports very high microstepping (up to 51200 subdivision) for ultra-smooth operation
- Compatible with multiple Windows systems without complex driver installation
- Includes all necessary components for a comprehensive upgrade
- High torque motor suitable for demanding CNC tasks
Cons:- Requires a good level of technical knowledge to assemble and configure
- Higher cost compared to simpler, open-loop solutions
Best for: Advanced hobbyists or small workshop operators seeking a flexible, high-torque control solution.
Not ideal for: Beginners or casual users who prefer plug-and-play solutions with minimal setup effort.
- Stepper Motor Model:23HS2430B
- Motor Phase:2 Phase
- Step Angle:1.8 degrees
- Holding Torque:425 oz-in
- Input Voltage:20-50V DC
- Control Board:USB Mach3 4-Axis
- Power Supply:36V/24V DC, 400W/75W
Our verdict“This kit makes the most sense for experienced users seeking precise, high-torque CNC control with flexible microstepping capabilities.”

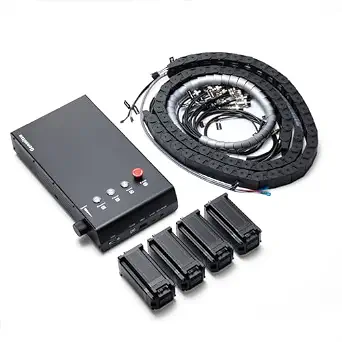

Genmitsu Close-Loop Stepper Motor Set for PROVerXL 4030, 4PCS 60-100 Closed Loop Stepper Motors with Chain Cables and GRBL Control Box Upgrade Kit
This set is tailored for upgrading PROVerXL 4030 models, offering four closed-loop motors with significant precision (+/-0.05mm) and higher efficiency. Unlike the RATTMMOTOR CNC Controller Kit, which uses open-loop stepper motors, this kit’s closed-loop design minimizes missed steps and improves overall accuracy—crucial for high-precision engraving. The inclusion of a dedicated control box with USB makes integration with popular CNC software straightforward, provided you are working within compatible PROVerXL versions. While its precision and speed capabilities are impressive, the setup is more complex and limited to specific machine models, so it’s less suitable for general or older CNC routers.
Pros:- Exceptional precision of ±0.05mm for detailed engraving
- Four motors provide balanced power and redundancy
- Enhanced efficiency with smoother operation at high speeds
- Compatible with popular CNC software via USB
Cons:- Limited to specific PROVerXL models, reducing versatility
- Installation requires technical expertise and careful calibration
Best for: Proprietors of PROVerXL 4030 seeking a high-precision, efficient upgrade with minimal missed steps.
Not ideal for: Owners of non-compatible machines or those new to CNC who prefer easy, universal solutions.
- Compatibility:PROVerXL 4030 V1 & V2, 1010 Version
- Precision:±0.05mm
- Speed:up to 10000mm/min
- Torque:3.5N·m
- Number of Motors:4
- Control Box:GRBL-based, USB
Our verdict“Ideal for advanced users of PROVerXL 4030 who need high accuracy and efficiency upgrades, but less suitable for general or beginner CNC setups.”
RATTMMOTOR CNC Controller Kit, 4 Axis CNC Machine Control Card with TB6600 Driver and Stepper Motors
This kit offers four axes of control with a TB6600 driver and high-torque Nema23 motors, making it a solid choice for multi-axis CNC machines on a budget. Compared with the 3 Axis Nema23 Stepper Motor Driver USB Mach3 Board, it emphasizes safety features like over-current and overload protection, while still delivering good processing accuracy through interpolation. Its inclusion of a control card, driver, and motors simplifies the upgrade process, but the wiring complexity and lack of detailed instructions can be hurdles for less experienced users. Its compatibility is also less clear outside certain machine types, making it less versatile for general upgrades.
Pros:- Supports 4 axes with high processing accuracy
- Includes high-torque motors suitable for demanding tasks
- Built-in safety features for reliable operation
- Supports USB connectivity for easy software integration
Cons:- Requires technical skill for wiring and setup
- Limited detailed user manual or support info
Best for: Hobbyists or small workshop owners wanting a cost-effective, multi-axis upgrade for existing CNC machines.
Not ideal for: Beginners or users with less technical skill, due to wiring complexity and limited documentation.
- Number of axes:4
- Stepper motor model:23HS8430
- Stepper motor current:3A
- Pulse frequency:400KHz
- Power supply:24V DC
Our verdict“A budget-friendly choice for experienced users upgrading multi-axis CNCs, but less accessible for newcomers due to setup complexity.”
Genmitsu CNC 3018-PRO Router Kit, 3-Axis CNC Machine, Mini Milling Machine
This compact CNC router is designed for newcomers and small-scale makers, supporting materials like wood, acrylic, and soft aluminum. Unlike the more advanced kits, the 3018-PRO is straightforward to operate with its offline control box, making it ideal for homes and classrooms. It offers limited working space, which restricts larger projects, but its size and affordability make it accessible for those just getting started. Compared to the 3 Axis Nema23 Stepper Motor Kit, it sacrifices some precision and power for ease of use and size. Its build quality can vary, so careful assembly and calibration are necessary to achieve decent results.
Pros:- Compact size fits small workshops and classrooms
- Supports multiple materials including wood and soft metals
- Flexible control options, both offline and via computer
- Affordable entry point into CNC milling
Cons:- Limited working area restricts larger projects
- Requires some technical skill for assembly and calibration
Best for: Beginner hobbyists or educators seeking an easy-to-use, small-scale CNC solution.
Not ideal for: Experienced users working on larger, more complex projects requiring higher power and precision.
- Power Source:24 volts
- Horsepower:120 watts
- Maximum Rotational Speed:20000 rpm
- Item Dimensions:7.09″W x 11.81″H
- Item Weight:15.3 pounds
- Control Type:Offline GRBL controller
Our verdict“A practical starter CNC for beginners or educational environments, though limited by size and power for serious projects.”
How We Picked
The products in this roundup were evaluated based on their performance, build quality, ease of installation, and value for money. We prioritized kits that are compatible with common CNC machines and software, ensuring broad usability. Ease of setup and user support were also key, especially for beginners. We ranked products higher if they offered reliable components, clear documentation, and balanced features for their price point. The goal was to identify options that cater to different user needs—from newcomers to advanced users—while maintaining high standards of quality and functionality.Factors to Consider When Choosing Cnc Controller Upgrade Kit
Choosing the right CNC controller upgrade kit involves weighing several factors to match your specific needs and skill level. Beyond basic compatibility, understanding how performance, expandability, and cost interact can prevent costly mistakes. A well-chosen kit can extend your machine’s capabilities and improve output, but selecting an incompatible or overly complex system can lead to frustration or hardware issues. This guide highlights key considerations to help you make an informed decision.Performance and Power Compatibility
Ensure the upgrade kit provides enough power to handle your machine’s size and intended workload. Higher torque Nema 34 motors are suitable for heavy-duty tasks but require compatible drivers and power supplies. Conversely, smaller Nema 23 kits are lighter and easier to install but may struggle with larger or more demanding materials. Matching the controller’s capabilities with your machine’s specifications prevents bottlenecks and ensures smooth operation.
Ease of Installation and User Support
Some kits come with comprehensive instructions, plug-and-play wiring, and active customer support, which is essential for those new to upgrades. Avoid overly complex systems if you lack experience with electronics or wiring, as improper setup can damage components. On the other hand, seasoned users might prefer more customizable kits that allow for future expansions. Consider your comfort level and choose a kit that offers adequate documentation and community resources.
Compatibility with Software and Hardware
Check that the kit is compatible with your existing CNC software, like Mach3, GRBL, or LinuxCNC. Some controllers are optimized for specific firmware or software environments, which can simplify setup and troubleshooting. Additionally, verify that the kit’s connectors and mounting options fit your machine’s structure. Failing to match hardware interfaces can lead to costly modifications or incompatibility issues.
Cost and Future Expandability
While budget options might suffice for basic upgrades, investing in a more capable kit can future-proof your machine for additional axes or higher precision. Consider whether the kit supports extra axes, advanced features like closed-loop control, or integration with automation tools. Balancing upfront cost against long-term flexibility helps avoid frequent replacements or upgrades down the line.
Reliability and Brand Reputation
Opt for brands with positive reviews and proven track records. Reliable components reduce downtime and maintenance issues, saving time and money. Additionally, check for warranty coverage and customer service reputation to ensure support if problems arise. A reputable brand often provides better firmware updates and compatibility assurances, which are vital for long-term operation.
Frequently Asked Questions
Will a CNC controller upgrade kit work with my existing machine?
Most upgrade kits are designed to be compatible with a range of common CNC machine models, but compatibility depends on factors like motor size, wiring, and control software. Before purchasing, verify your machine’s specifications and compare them with the kit’s requirements. Some kits might need additional adapters or modifications, so checking the manufacturer’s compatibility list or support resources can prevent surprises during installation.
Is it difficult to install a CNC controller upgrade kit myself?
The difficulty varies depending on the complexity of the kit and your electronics experience. Many kits now come with detailed instructions and plug-and-play features that simplify installation. However, kits with advanced features like closed-loop systems or multiple axes might require more technical knowledge. If you’re comfortable with wiring and basic electronics, you can typically handle the upgrade, but beginners should consider kits with strong support and clear documentation.
Do I need to upgrade my power supply when installing a new controller kit?
Upgrading to a higher-performance controller or motors often requires a compatible power supply with sufficient voltage and current capacity. Check the specifications of the kit to determine if your existing power supply meets these requirements. Using an inadequate power source can cause malfunctions or damage components, so investing in a quality, appropriately rated power supply is a wise step when upgrading your system.
Can I upgrade my CNC controller without changing my motors?
Many controller upgrade kits are compatible with existing motors, especially if they share the same voltage and wiring standards. However, to fully leverage new features like closed-loop control or higher torque, you might need to upgrade your motors as well. Compatibility depends on the motor size and driver requirements. Always verify that your current motors are supported by the new controller to avoid connectivity or performance issues.
How do I choose between open-loop and closed-loop CNC controllers?
Open-loop controllers are simpler and generally less expensive, suitable for basic or light-duty machining. Closed-loop controllers provide higher accuracy and reduce missed steps by actively monitoring motor position, making them better for precision work or heavy-duty applications. The tradeoff is increased complexity and cost, along with a steeper learning curve. Your choice should depend on your machine’s accuracy needs, budget, and technical comfort level.
Conclusion
If you’re new to CNC upgrades or mainly perform light to medium tasks, the Genmitsu Close-Loop Stepper Motor Set offers a reliable, user-friendly introduction. For those seeking the best overall upgrade, the RATTMMOTOR 3 Axis CNC Controller Kit provides a solid balance of power, support, and ease of use. Heavy-duty users needing maximum torque and precision should consider the 3 Axis Nema 34 Closed Loop Stepper Motor Kit, despite its higher cost and complexity. For cost-conscious hobbyists, budget-friendly options like the Genmitsu CNC 3018-PRO can boost your machine’s capabilities without breaking the bank. Match your choice to your experience level, project scope, and long-term plans to get the best upgrade for your needs.
